Compression Springs: A Comprehensive Guide for Engineers and Designers

Introduction

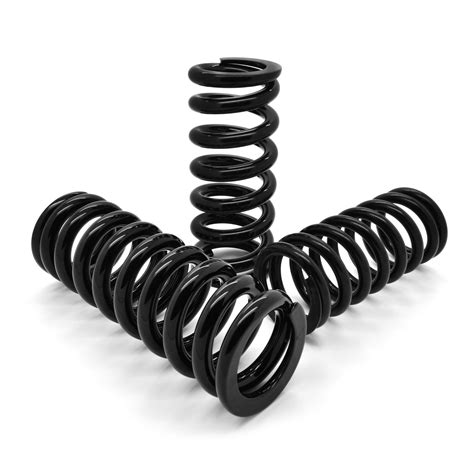

Compression springs are a critical component in a wide range of industries, from aerospace to medical devices. They provide a reliable and efficient way to store and release energy, making them essential for everything from shock absorption to valve actuation.

Understanding Compression Springs

Types of Compression Springs

There are various types of compression springs, each with unique characteristics and applications:

• Cylindrical Compression Springs: The most common type, with a cylindrical shape and closed coils.
• Conical Compression Springs: Tapered shape with a smaller upper coil, providing a variable spring rate.
• Barrel Compression Springs: A cylindrical spring with a slightly tapered shape, offering a compact design.

Spring Materials

Compression springs are typically made from high-strength materials, such as:

• Steel: Commonly used due to its durability, strength, and relatively low cost.
• Stainless Steel: Resistant to corrosion and oxidation, making it suitable for harsh environments.
• Music Wire: A high-carbon steel alloy with excellent elasticity and fatigue resistance.

Design Considerations for Compression Springs

Spring Force and Rate

The key design considerations for compression springs are spring force and rate.

• Spring Force: Measured in Newtons (N), it is the force required to compress the spring by a given distance.
• Spring Rate: Measured in Newtons per meter (N/m), it is the change in force per unit of deflection.

Spring Deflection

The deflection of a compression spring is the distance it compresses under load. It is important to consider the maximum deflection the spring can safely withstand without damage.

Free Length and Solid Height

The free length is the length of the spring when it is not under load. The solid height is the length of the spring when it is fully compressed.

Buckling and Vibration

Buckling occurs when a spring's coils collapse under excessive load. Vibration can occur if the spring's natural frequency matches the operating frequency of the system.

Common Mistakes to Avoid

To ensure optimal performance and longevity, it is crucial to avoid common mistakes when designing and using compression springs:

• Overloading: Exceeding the spring's maximum load capacity can lead to failure.
• Resonance: Allowing the spring to operate near its natural frequency can cause excessive vibration and damage.
• Improper Installation: Installing the spring incorrectly can result in premature failure or reduced performance.
• Corrosion and Contamination: Exposing springs to harsh environments can lead to corrosion and reduced lifespan.
• Fatigue: Repeated loading and unloading can eventually cause spring failure due to fatigue.

Why Compression Springs Matter

Compression springs play a vital role in various applications because they:

• Store and Release Energy: Springs accumulate potential energy when compressed and release it when released, providing a force to perform a desired action.
• Control Motion: Springs regulate the movement of components, preventing excessive displacement or vibration.
• Absorb Shock and Vibration: Springs dampen impact forces and reduce vibration, protecting sensitive components.
• Adjust and Position Components: Springs enable fine adjustments and positioning of components in assemblies.
• Increase Efficiency: Springs can improve the efficiency of systems by optimizing the use of energy and reducing wear and tear.

Tips and Tricks

• Use the right materials: Choose materials based on the application's requirements for strength, durability, and corrosion resistance.
• Calculate spring forces and rates accurately: Improper calculations can lead to under- or over-design, affecting performance and safety.
• Consider environmental factors: Account for temperature, humidity, and other factors that may impact spring performance.
• Avoid exceeding maximum loads and deflections: Operating springs within their specified limits ensures longevity and reliability.
• Test and validate: Thorough testing is crucial to verify spring performance and identify any potential design issues.

Table 1: Spring Force vs. Deflection

Table 2: Spring Materials and Properties

Table 3: Common Mistakes and Consequences

Applications of Compression Springs

Compression springs find applications in a wide array of industries:

• Aerospace: Landing gear, flight controls, and actuation systems.
• Automotive: Suspension systems, engine components, and clutches.
• Electronics: Printed circuit boards, switches, and connectors.
• Medical Devices: Implants, surgical instruments, and diagnostic equipment.
• Industrial Machinery: Conveyors, assembly lines, and pumps.

Conclusion

Compression springs are essential components for energy storage, motion control, and shock absorption. Understanding their design, properties, and applications is critical for engineers and designers. By carefully considering spring force, rate, deflection, and materials, it is possible to optimize spring performance and ensure reliability in demanding applications.
