The Ultimate Guide to Needle Bearings: Precision, Performance, and Applications

Introduction

In the realm of industrial machinery and engineering, needle bearings stand out as unparalleled performers, delivering unmatched precision, reliability, and efficiency. Their compact design, exceptional load-bearing capacity, and reduced friction make them the ideal choice for demanding applications across various industries.

What are Needle Bearings?

Needle bearings are roller bearings characterized by their elongated, cylindrical rollers called "needles." These rollers are precisely manufactured and meticulously arranged within a hardened steel raceway to minimize rolling resistance and maximize load distribution.

Types of Needle Bearings

Needle bearings come in various configurations to cater to specific application requirements:

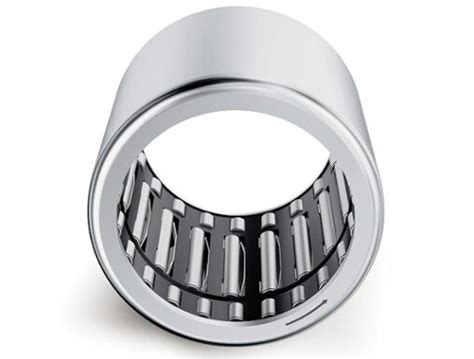

• Drawn cup needle bearings feature a thin-walled outer ring with a drawn cup design, offering high load capacity and compact dimensions.
• Drawn cup needle roller bearings with flanges incorporate flanges on the outer ring for enhanced axial positioning and rigidity.
• Needle roller bearings consist of a stamped steel outer ring and rollers, providing higher radial load capacity and suitability for high-speed applications.
• Needle thrust bearings utilize a cage to separate the needles and accommodate axial forces, making them ideal for thrust applications.

Advantages of Needle Bearings

• Compact size: Their small cross-section and reduced diameter allow for space-saving designs, fitting in tight spaces where traditional bearings are impractical.
• High load capacity: Despite their compact size, needle bearings exhibit exceptional load-bearing capability, handling significant radial and axial loads.
• Low friction: The precision-engineered rollers and races minimize rolling resistance, resulting in reduced energy consumption and improved efficiency.
• High speed: Needle bearings are capable of withstanding high rotational speeds, making them suitable for applications involving fast-moving machinery.
• Cost-effective: Compared to other types of bearings, needle bearings offer a more cost-effective solution, without compromising performance.

Applications of Needle Bearings

The versatility of needle bearings makes them applicable in a wide range of industries, including:

• Automotive: Transmissions, engines, steering systems
• Industrial machinery: Conveyors, printing presses, textile machinery
• Medical devices: Surgical instruments, medical imaging equipment
• Aerospace: Landing gear, flight control systems
• Consumer products: Power tools, household appliances

Selection and Installation Guidelines

Selecting the appropriate needle bearing for your application requires careful consideration of factors such as load capacity, speed, and operating conditions. Reputable manufacturers provide extensive documentation and engineering support to guide your selection process.

• Load capacity: Determine the maximum radial and axial loads the bearing will be subjected to, selecting a bearing with adequate load-bearing capacity.
• Speed: Consider the operating speed of the application to ensure the bearing can withstand the rotational velocities.
• Operating conditions: Factors such as temperature, lubrication, and exposure to contaminants should be taken into account when selecting the bearing material and design.

Maintenance and Troubleshooting

Regular maintenance is essential for ensuring the longevity and optimal performance of needle bearings. Here's a simple maintenance checklist:

• Lubrication: Follow the manufacturer's recommendations for lubrication intervals and lubricant selection.
• Inspection: Periodically inspect the bearings for signs of wear, contamination, or damage.
• Replacement: If the bearing fails or becomes damaged, replace it promptly to prevent further equipment malfunctions.

Common Challenges and Solutions

Despite their reliability, needle bearings can face certain challenges in specific applications:

Challenge: Needle fracture due to excessive loads or improper installation.
Solution: Use bearings with adequate load capacity and follow manufacturer's installation instructions.

Challenge: Cage wear caused by debris contamination or misalignment.
Solution: Regularly clean the bearings and inspect for foreign objects. Ensure proper alignment during installation.

Challenge: False brinelling resulting from insufficient lubrication or static loads.
Solution: Provide adequate lubrication and avoid excessive static loads. Rotate the bearings occasionally during storage.

Stories and Lessons Learned

• Case Study 1: In a high-speed packaging line, needle bearings were used in the conveyor rollers to reduce friction and improve efficiency. The bearings' compact size and low rolling resistance significantly reduced energy consumption and increased productivity.
• Case Study 2: A medical equipment manufacturer replaced traditional bearings with needle bearings in a surgical instrument. The smaller size and reduced friction of the needle bearings allowed for more precise and delicate surgical procedures, enhancing patient outcomes.
• Lesson Learned: Proper bearing selection and installation are crucial for optimal performance and longevity. Regular maintenance and troubleshooting can prevent costly downtime and ensure smooth operation of machinery.

Effective Strategies for Using Needle Bearings

• Maximize load capacity: Choose bearings with needle rollers of appropriate length and diameter to distribute loads effectively.
• Minimize friction: Ensure proper lubrication and precision-engineered bearings to reduce rolling resistance and improve energy efficiency.
• Enhance reliability: Select bearings with high-quality materials, proper heat treatment, and effective sealing to extend their lifespan.
• Reduce maintenance: Use bearings with built-in lubrication or labyrinth seals to minimize maintenance intervals and downtime.

Step-by-Step Approach to Needle Bearing Installation

1. Prepare: Clean the bearing surfaces and shaft thoroughly.
2. Lubricate: Apply the specified lubricant to the bearing and contact surfaces.
3. Position: Align the bearing with the shaft and carefully slide it into place.
4. Secure: Tighten the bearing or shaft as per manufacturer's specifications.
5. Check: Rotate the bearing manually to ensure smooth operation and proper alignment.

Pros and Cons of Needle Bearings

Pros:

• High load capacity
• Compact size
• Low friction
• High speed capability
• Cost-effective

Cons:

• Limited axial load capacity in some types
• Sensitivity to improper installation
• Susceptibility to contamination

Conclusion

Needle bearings are an indispensable component in modern machinery, providing unparalleled precision, performance, and durability. Their unique design and exceptional load-bearing capacity make them ideal for demanding applications across various industries. By understanding their advantages, limitations, and selecting the appropriate bearing for your specific requirements, you can harness the full potential of needle bearings and reap the benefits of improved efficiency, reliability, and cost savings.

Tables

Table 1: Typical Load Ratings of Needle Bearings

Table 2: Key Specifications for Selecting Needle Bearings

Table 3: Maintenance and Troubleshooting Checklist for Needle Bearings
